LED Downlight CVNS00031

Model: CVNS00031
Wattage: 10W-60W
LED Chip: Citizen/Cree
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 15°/30°/45°
Diameter: 90mm-225mm
Cutout: 80mm-210mm

Inquiry

Details

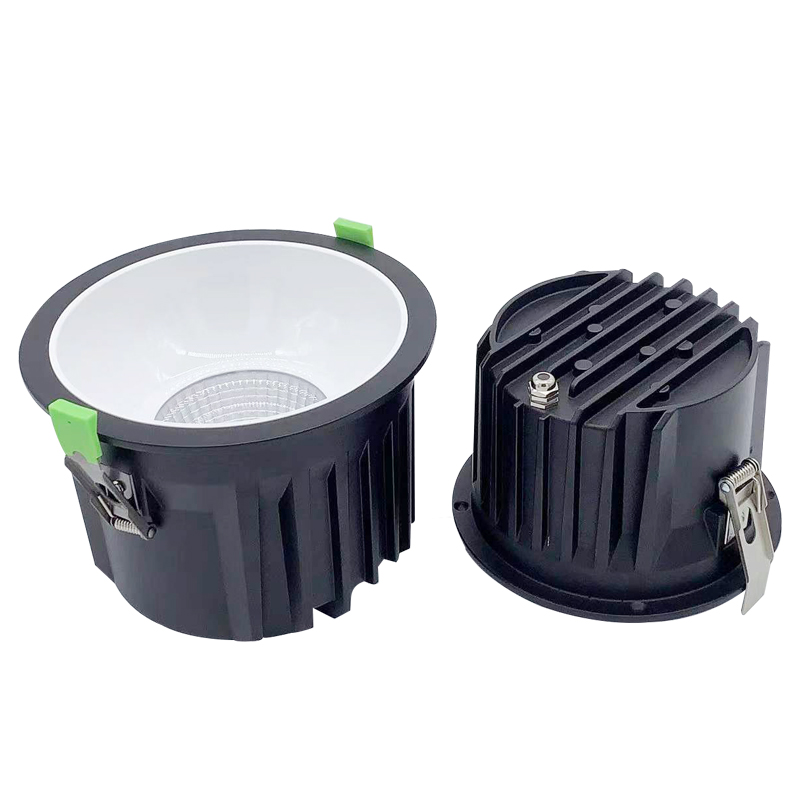

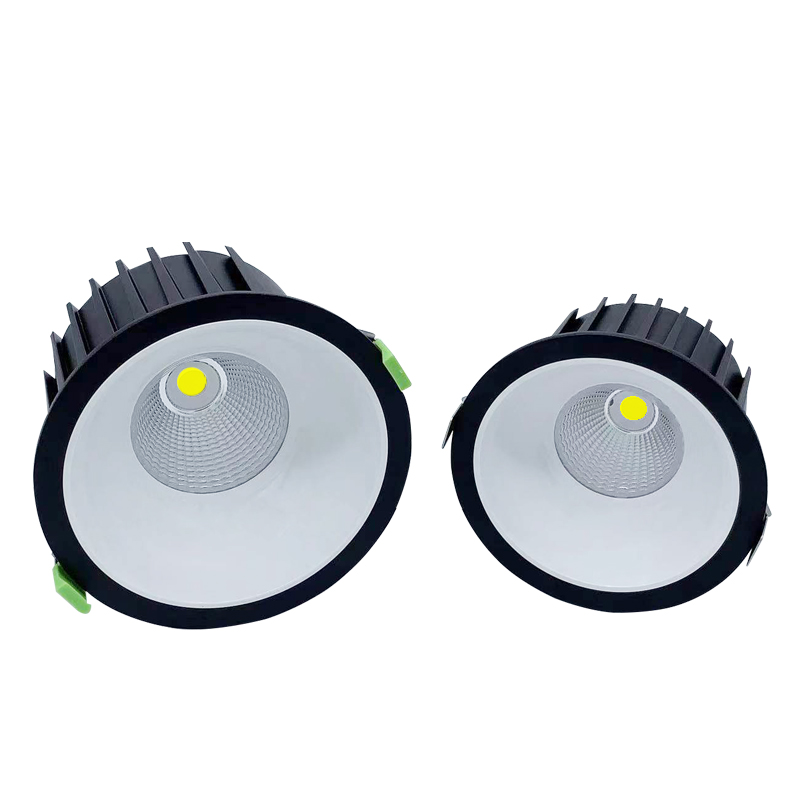

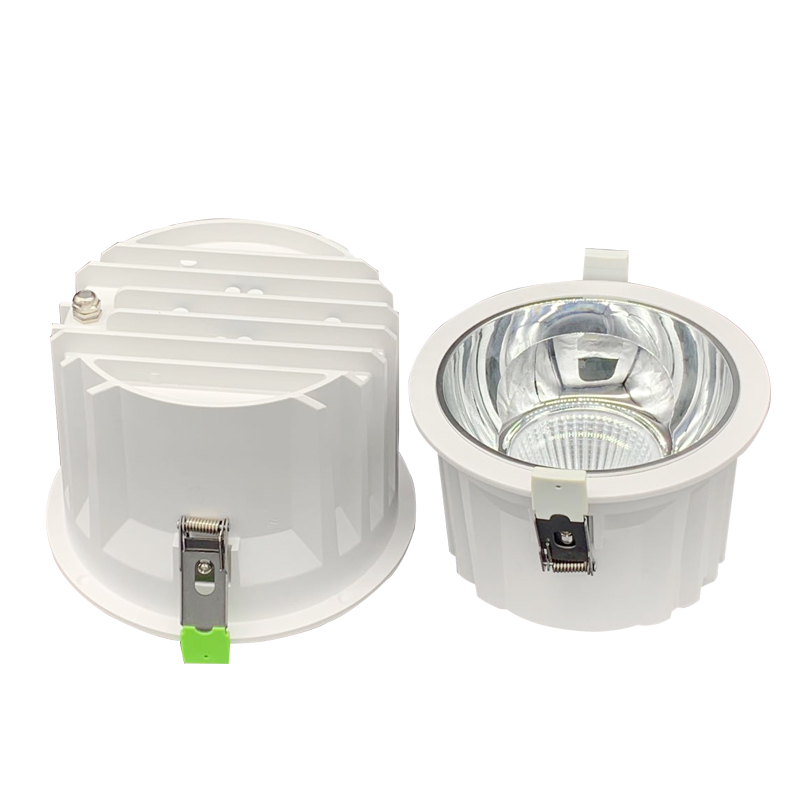

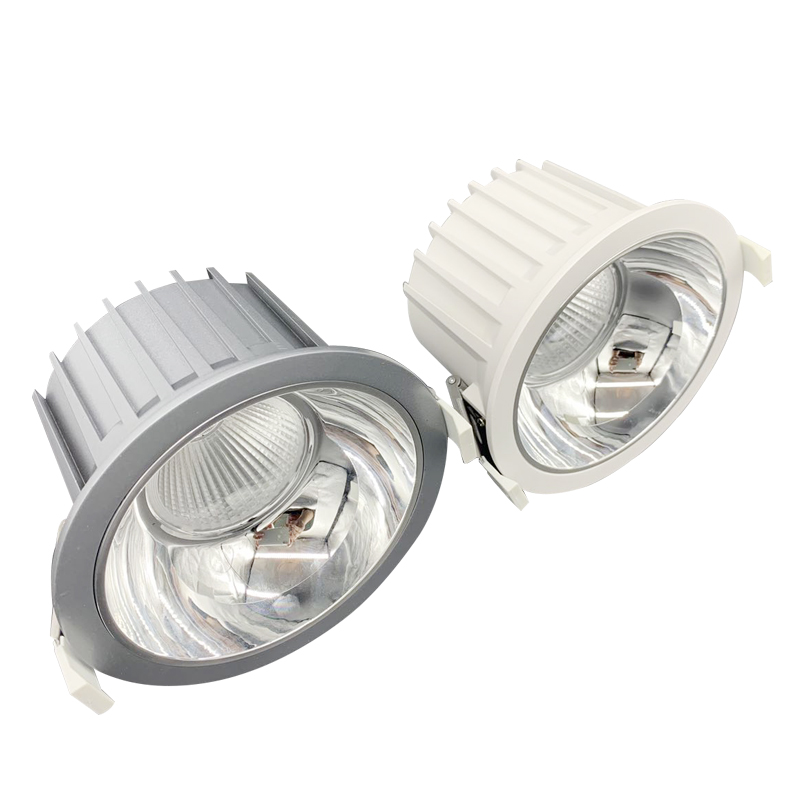

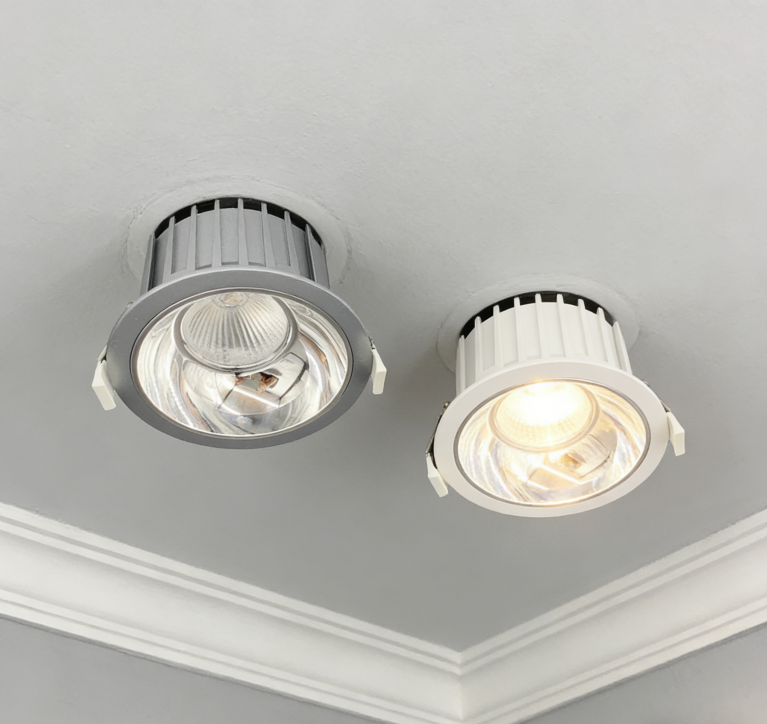

Product Pictures:

LED Downlight CVNS00031

Model	Power	CRI	CCT	PF	Input Voltage	Beam Angle	Dimension	Cutout	IP
CVNS00031	10W	>80/90	2700K-5000K	>0.65	AC220-240V	15°/30°/45°	D90*H70mm	80mm	40
CVNS00031	15W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	D134*H95mm	120mm	40
CVNS00031	20W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45	D160*H105mm	145mm	40
CVNS00031	30W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45°	D190*H128mm	175mm	40
CVNS00031	40W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45	D190*H128mm	175mm	40
CVNS00031	50W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45	D225*H147mm	210mm	40
CVNS00031	60W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/30°/45	D225*H147mm	210mm	40
