LED Linear Light CVNS00151

Model: CVNS00151
Wattage: 3W-35W
LED Chip: OSRAM/CREE
Driver Brand: OSRAM/LIFUD/BOKE
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/38°/50°/50x50°/70x70°/35x70°
Diameter: 51mm-393mm
Cutout: 46mm-390mm

Inquiry

Details

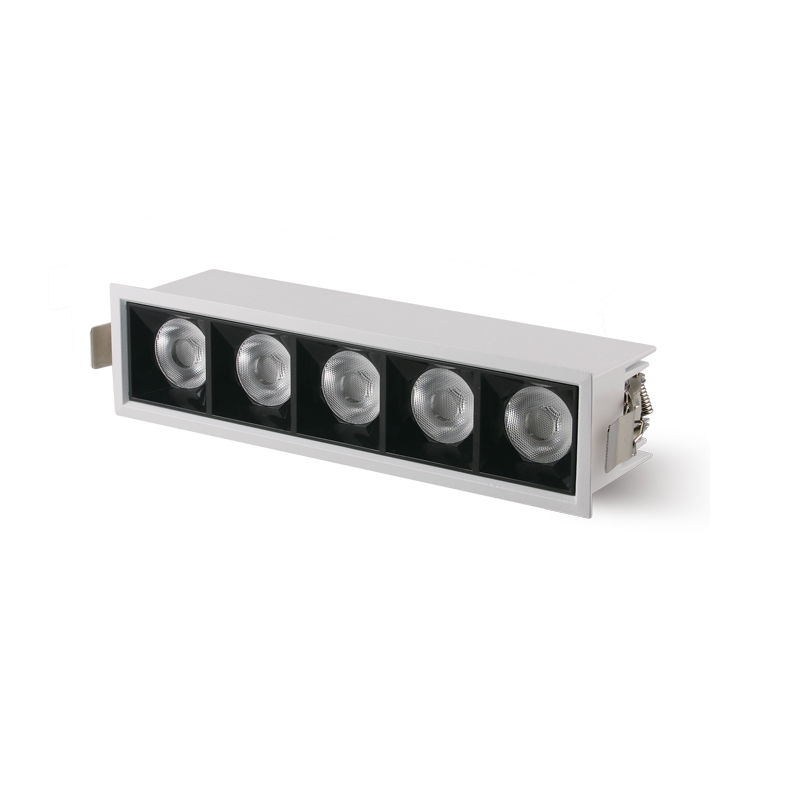

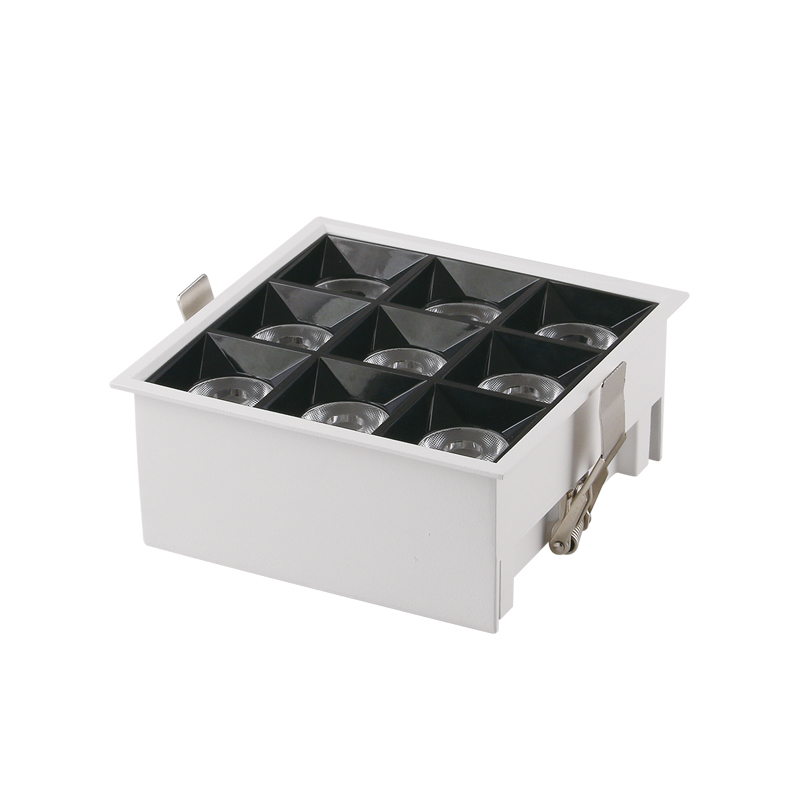

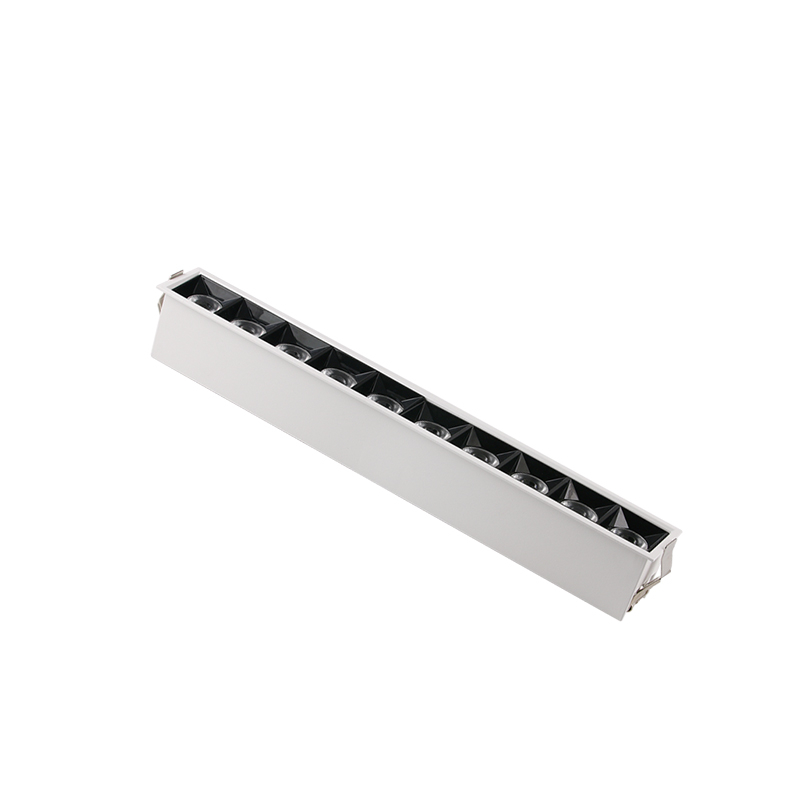

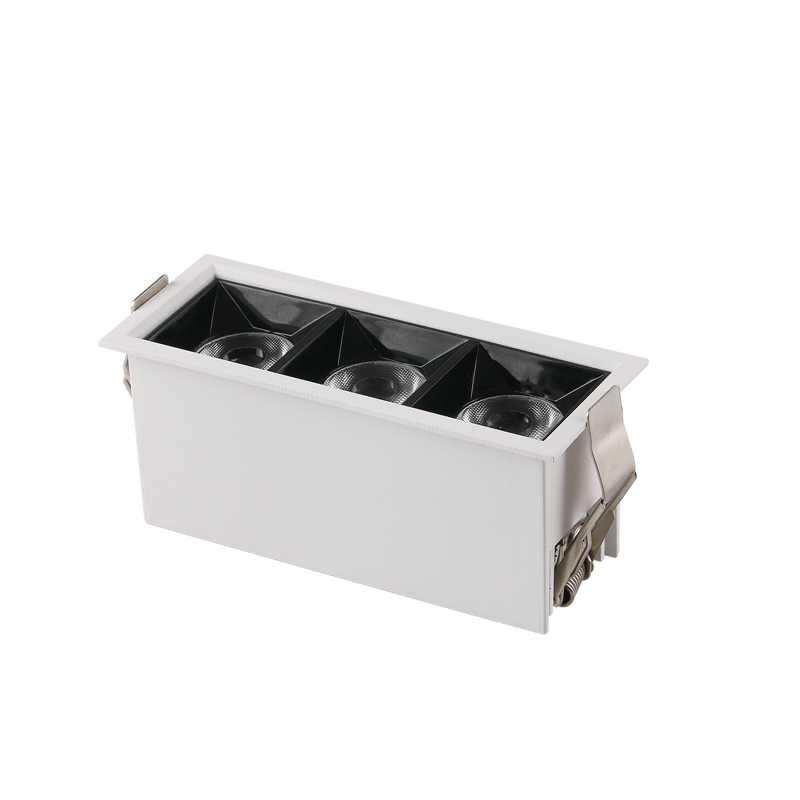

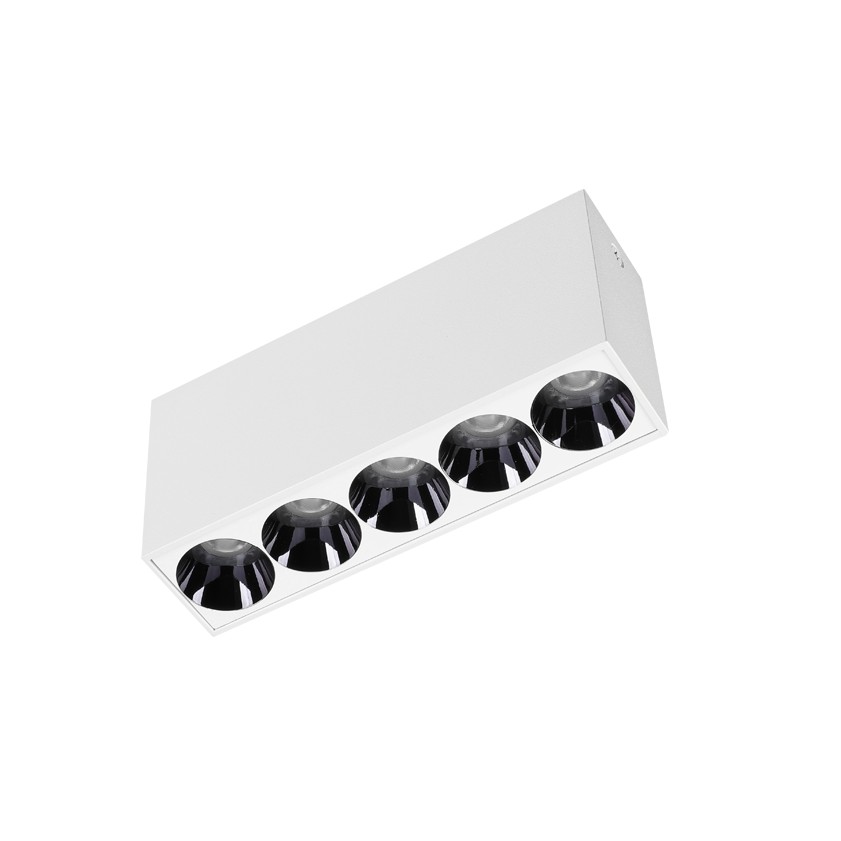

Product Pictures:

LED Linear Light CVNS00151

Model	Power	CRI	CCT	PF	Input Voltage	Beam Angle	Dimension	Cutout	IP
CVNS00151	3W	>80/90	2700K-5000K	>0.65	AC220-240V	15°/24°/38°/50°	L51W51H56mm	L46*W46mm	40
						/50x50°/70x70°/35x70°
CVNS00151	10W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/50°	L127W51H56mm	L124*W4mm	40
						/50x50°/70x70°/35x70°
CVNS00151	15W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/50°	L90W90H56mm	L86*W86mm	40
						/50x50°/70x70°/35x70°
CVNS00151	20W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/50°	L203W51H56mm	L200*W46mm	40
						/50x50°/70x70°/35x70°
CVNS00151	30W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/50°	L128W128H56mm	L124*W124mm	40
						/50x50°/70x70°/35x70°
CVNS00151	35W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/50°	L393W51H56mm	L390*W46mm	40
						/50x50°/70x70°/35x70°
