LED Linear Light CVNS00049

Model: CVNS00049
Wattage: 3W-35W
LED Chip: OSRAM5050
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/38°/50°/50x50°/70x70°/35x70°
Diameter: 51mm-393mm
Cutout: 43mm-386mm

Inquiry

Details

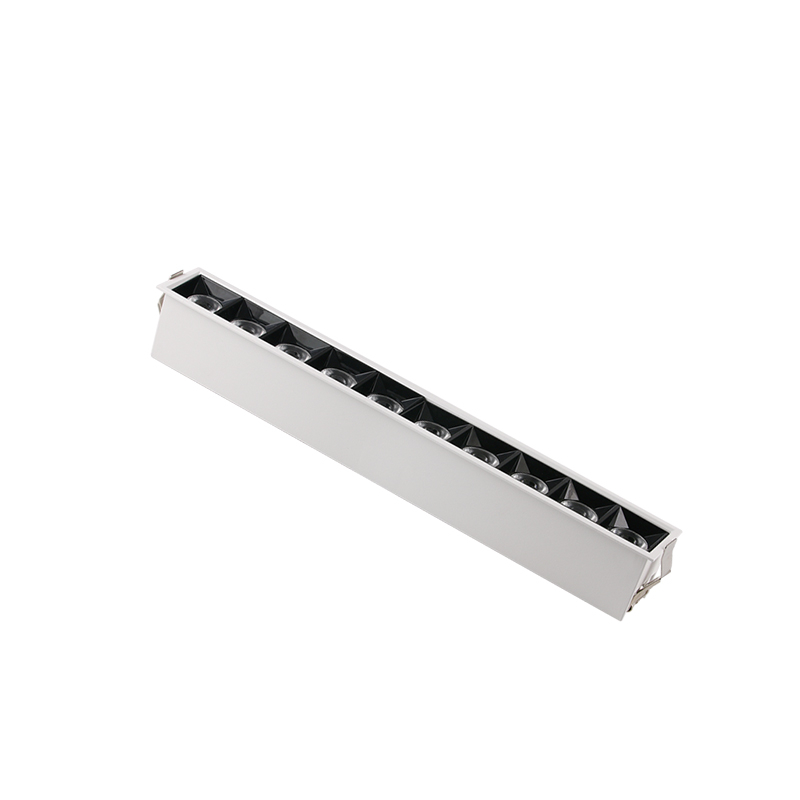

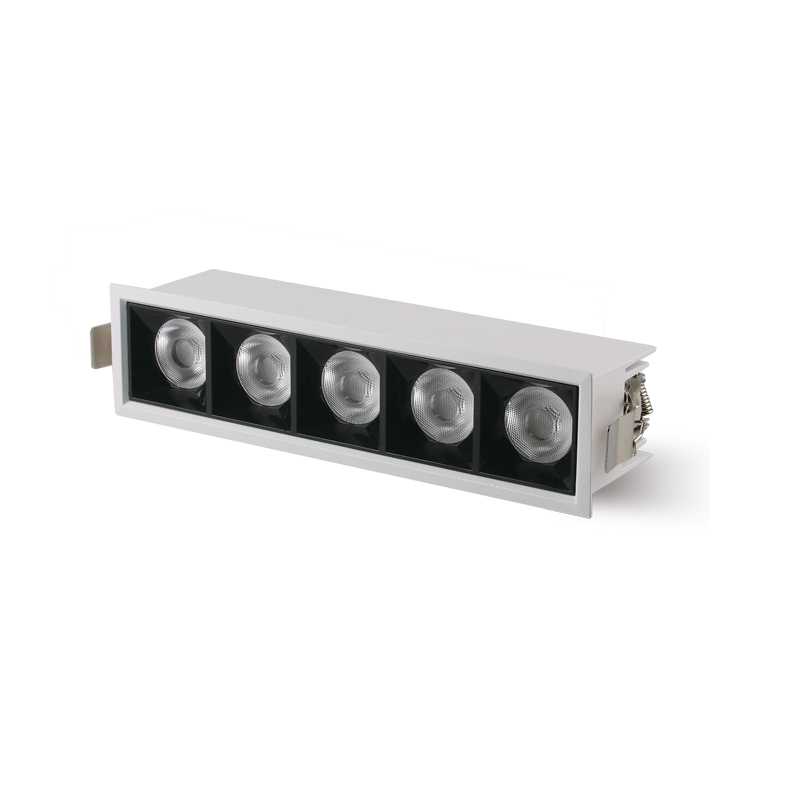

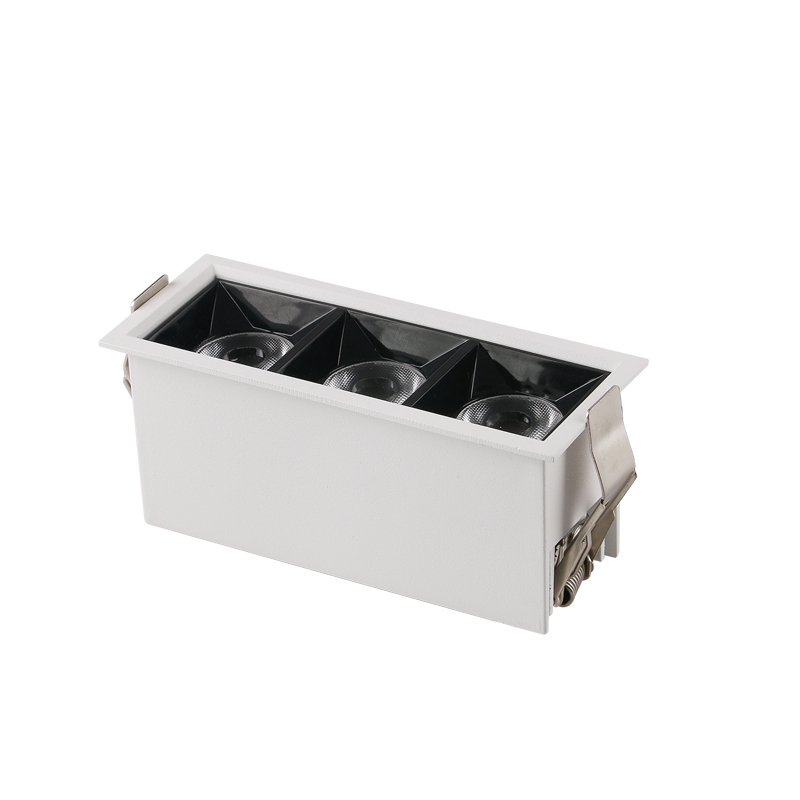

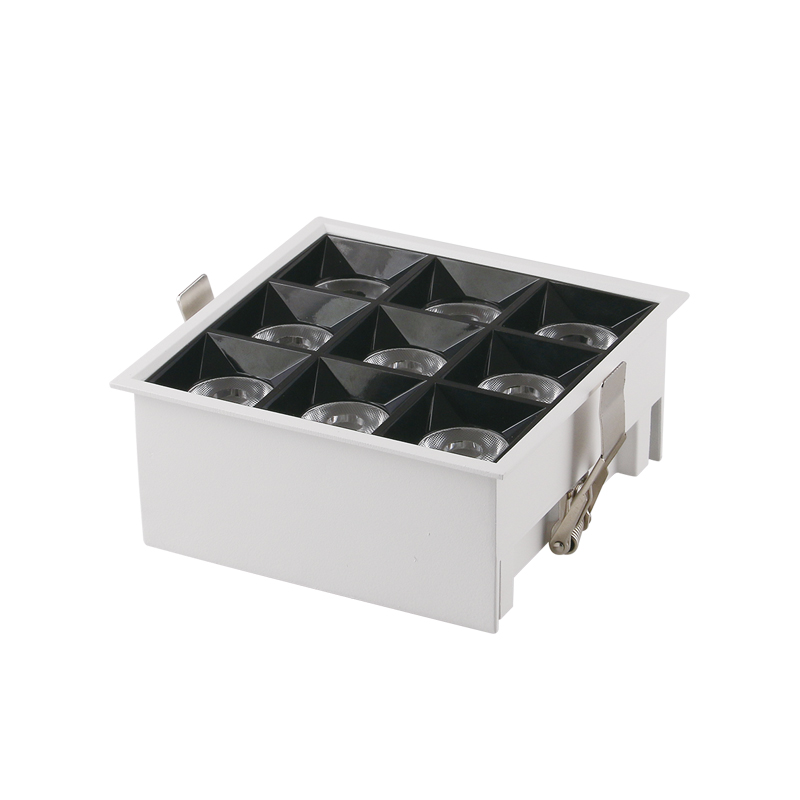

Product Pictures:

LED Linear Light CVNS00049

Model	Power	CRI	CCT	PF	Input Voltage	Beam Angle	Dimension	Cutout	IP
CVNS00049	3W	>80/90	2700K-5000K	>0.65	AC220-240V	15°/24°/38°/50°	L51W51H56mm	L43*W43mm	40
						/50x50°/70x70°/35x70°
CVNS00049	10W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/50°	L127W51H56mm	L120*W43mm	40
						/50x50°/70x70°/35x70°
CVNS00049	15W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/50°	L90W90H56mm	L80*W80mm	40
						/50x50°/70x70°/35x70°
CVNS00049	20W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/50°	L203W51H56mm	L195*W43mm	40
						/50x50°/70x70°/35x70°
CVNS00049	30W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/50°	L128W128H56mm	L120*W120mm	40
						/50x50°/70x70°/35x70°
CVNS00049	35W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/50°	L393W51H56mm	L385*W43mm	40
						/50x50°/70x70°/35x70°
