LED Downlight CVNS00004

Model: CVNS00004
Wattage: 7W-30W
LED Chip: CREE/Citizen
Driver Brand: OSRAM/BOKE/Lifud(Non-Dimming, 0-10V Dimming, DALI Dimming and Triac Dimming for your options)
RA: ＞80/90
Finish Color: White/Black/Customized
Beam Angle: 15° /24° /38°/60°
Diameter: 90mm-160mm
Cutout: 70mm-135mm
Lumens: 90-100 LM/W

Inquiry

Details

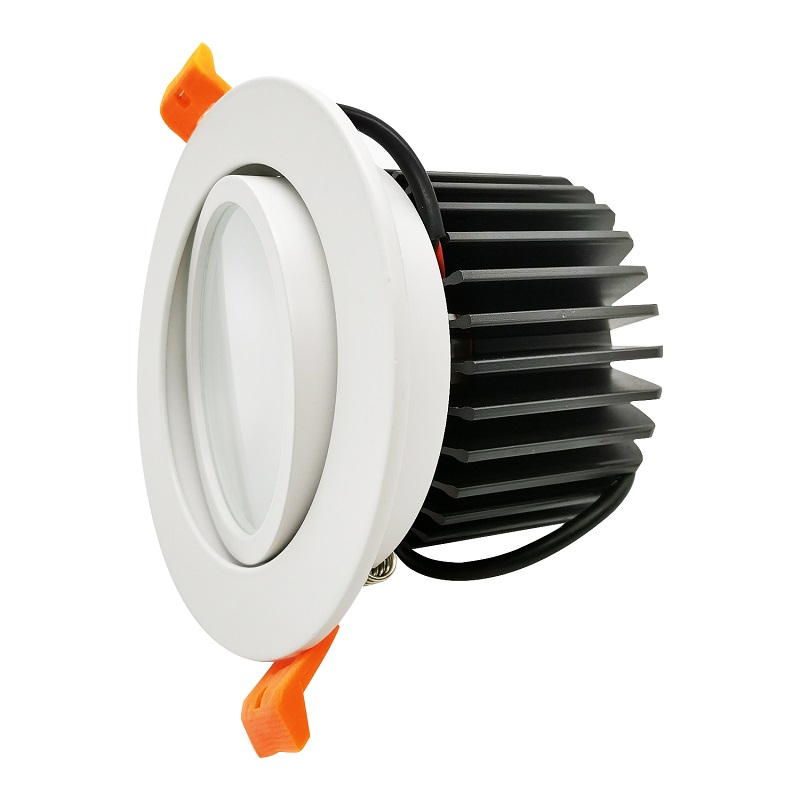

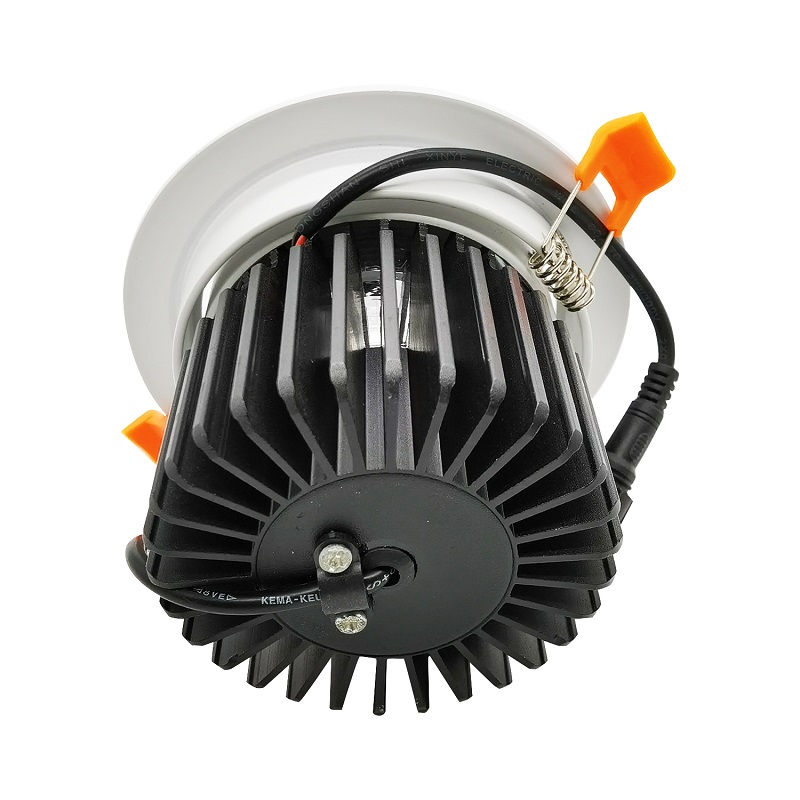

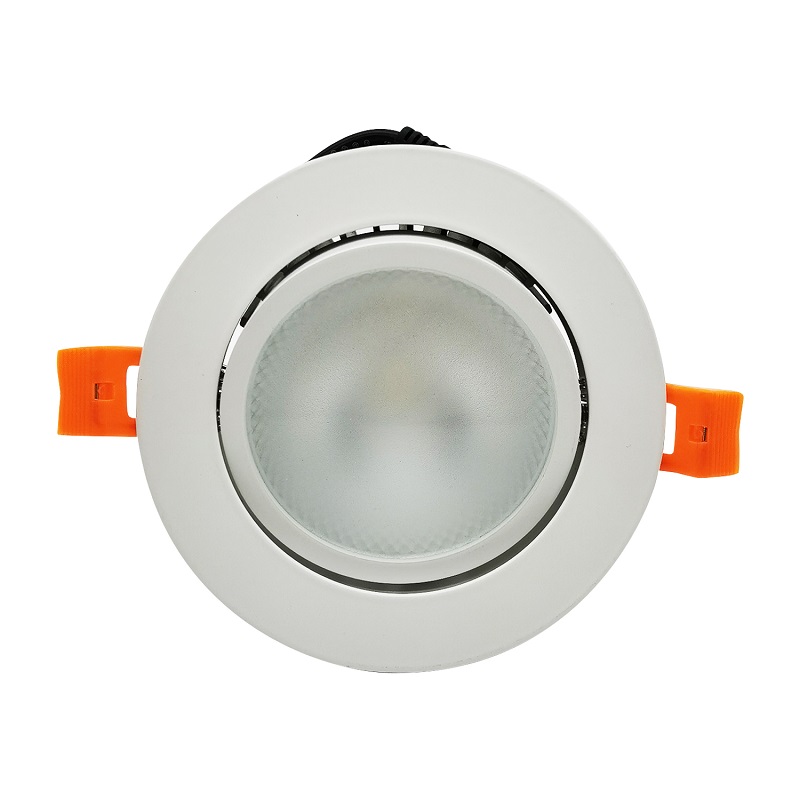

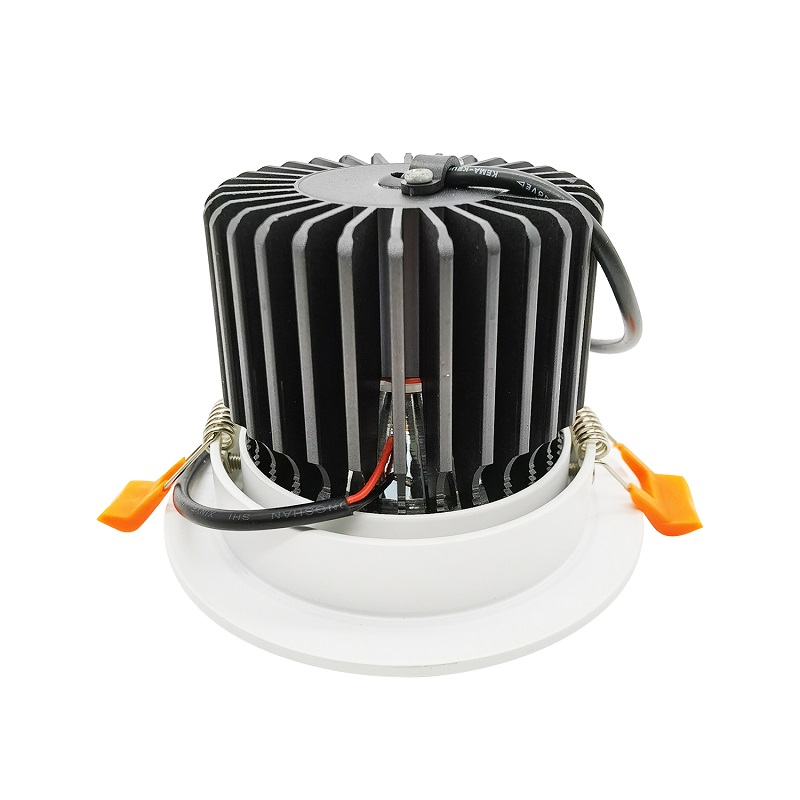

Product Pictures:

LED Downlight CVNS00004

Model	Power	CRI	CCT	PF	Input Voltage	Beam Angle	Dimension	Cutout	IP
CVNS00004	7W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/60°	D90*70mm	70mm	40
CVNS00004	10W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/60°	D110*76mm	90mm	40
CVNS00004	15W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/60°	D110*76mm	90mm	40
CVNS00004	20W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/60°	D140*100mm	115mm	40
CVNS00004	25W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/60°	D160*120mm	135mm	40
CVNS00004	30W	>80/90	2700K-5000K	>0.90	AC220-240V	15°/24°/38°/60°	D160*120mm	135mm	40
